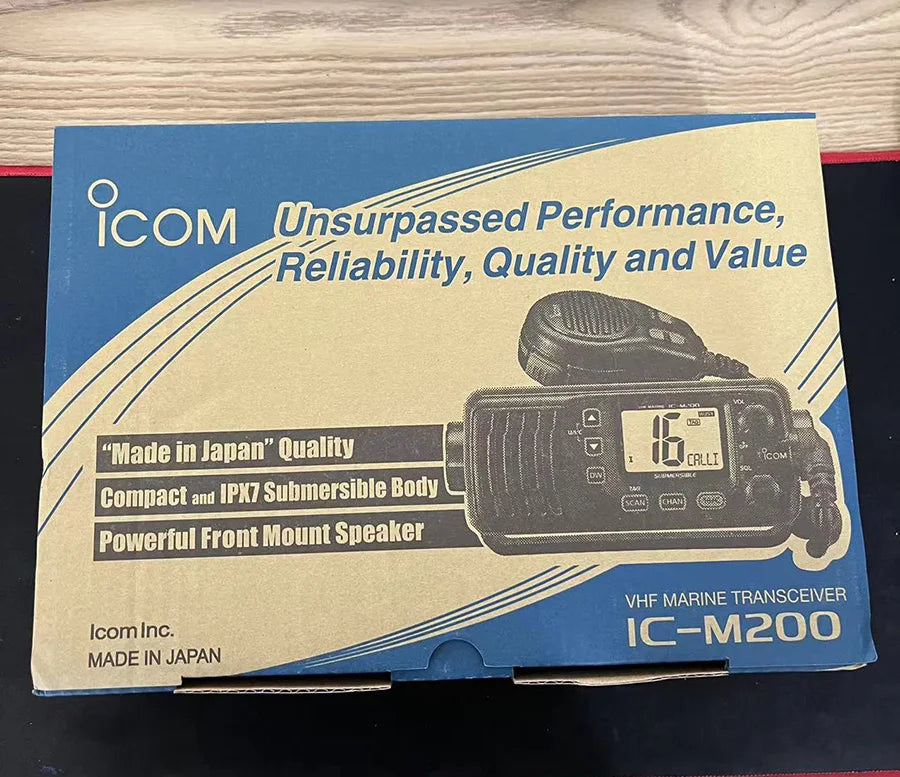

Japan ICOM Aikemu IC-M200 marine VHF radio walkie-talkie VHF high power 25 watts

parameter


general indicators
Frequency Range:
TX: 156.025-162.000MHz
RX:156.025-162.025MHz

Frequency of use: INT, USA, CAN channels

Send type: 16K0G3E (FM)

Power supply: 13.8V DC standard (11.7V-15.9V DC)

Current Consumption:
TX (25W output): 5.5A (not greater than)
RX: 1.5A (not greater than)

Operating temperature: -20°C~60°C

Antenna impedance: 50Ω

Dimensions (excluding protruding parts): 153*67*133mm

Weight: about 790g


launch indicator
Output power: 25W (High power) 1W (Low power)

Modulation method: variable reactance

Frequency offset: ±5kHz

Frequency stability: ±5ppm

Spurious emissions:
Less than -70dBc(High power)
Less than -56dBc (Low power)

Adjacent channel power: greater than 70dB

Audio distortion: less than 10% (at 60% dev.)

Residual modulation: more than 40dB


Reception indicator
IF frequency:
1st: 21.7MHz
2nd: 450kHz

Sensitivity: -14dB μ nominal (at 12dB SINAD)

Static dry sensitivity: less than -10dBμ

Adjacent channel selectivity: 70dB typical

Spurious response: 70dB typical

Intermodulation: 70dB typical

Signal-to-noise ratio: More than 40dB

Audio output: 4.5W nominal I (10% distortion 4Ω load)
